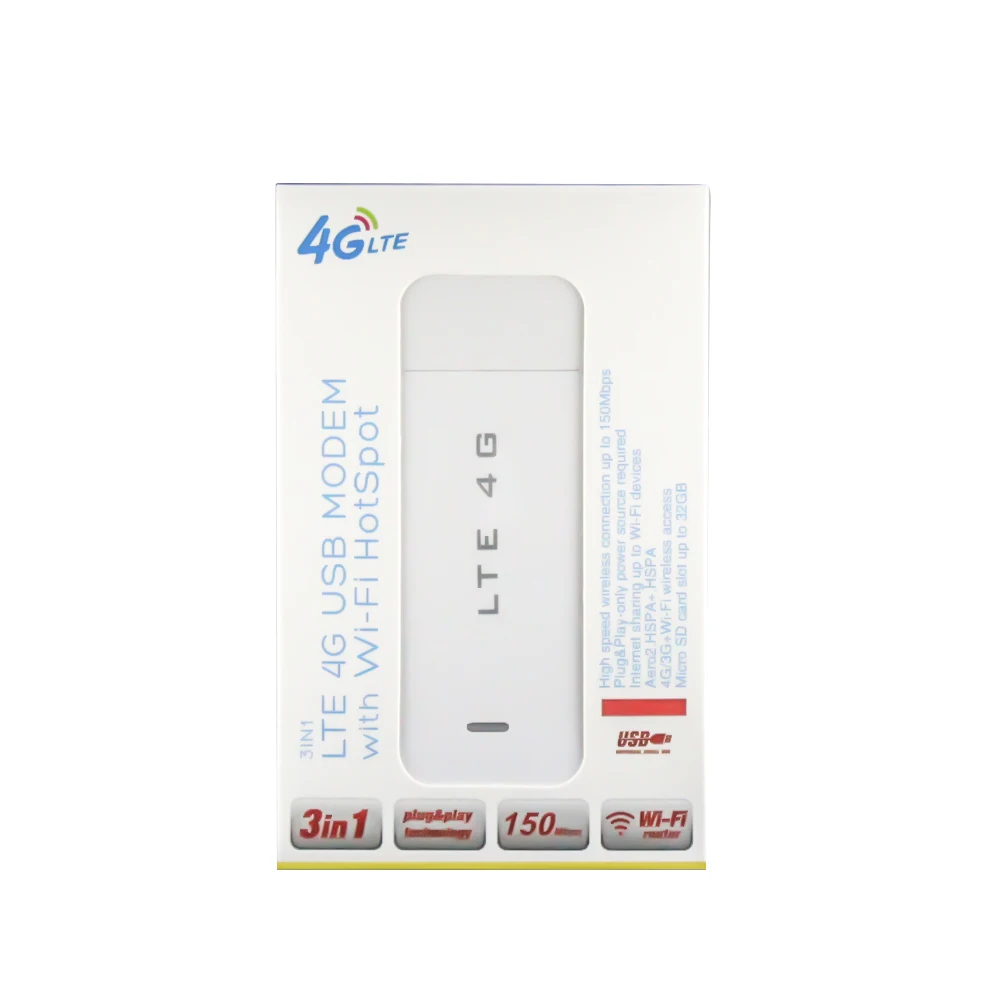

M129B 4G LTE USB WIFI dongle with dongle and WIFI two work mode

FOB Reference Price:Get Latest Price
US $26-30 / Pieces | 1 Piece/Pieces Container (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Wireless
Application:
Soho
Function:
4G LTE USB DONGLE
LAN Ports:
0
WAN Ports:
0
Certification:
CE FCC ROHS 3GPP
Brand Name:
XINXUN or ODM/OEM
Model Number:
M129B
Place of Origin:
Guangdong, China (Mainland)
CPU:
Marvell 88MP1802
Network Type:
TDD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM
speed:
LTE category 4 DL150Mbps UL 50Mbps.
LTE band:
FDD: 1,3,5,7,8,20, TDD:38,39,40,41 optional
customizable band:
band 2, 4, 12,17 for USA
WIFI:
IEEE802.11b/g/n 2.4G
WIFI users:
10
WIFI transmission distance:
indoor up to 15 meters
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package.
Port
Shenzhen, China.
Lead Time :
within 25 working days after deposit
Product Description



1.1 Overview

       This 4G LTE dongle  can provide process to internet through TDD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM.

        can be process to internet  as a dongle.  with dongle and wifi two work mode.

        work by 5V 1A DC USB power supply,  no need any drive.

        support TR069, OTA.

1.2 Main features

      FDD-LTE: band 1,3,5,7,8,20,28 optional.
      TDD-LTE: band 38,39,40,41 optional.
      Customizable USA band: band 2, 4, 12,17.
      TD-SCDMA: band 34, 39.
      WCDMA: band 1,2,5.
      GSM: GSM850, EGSM, DCS,PCS.
      Wifi:IEEE802.11b/g/n 2.4G
1.3 References
       3GPP R9

2.1 Basic specs

        size: 97*33*10mm

        power supply: 5V DC

        USIM/SIM:  standard 8PIN

2.2  Mainboard

        storage:  NorFLASH 2GB

2.3  LTE module specs

        sencitivity(MRC)  -97 dBm  @10MHz QPSK

        CPU  88MP1802

        standard 3GPP R9

        throughput rate:   DL/UL 150/50 Mbps (Cateeroty 4)

        RX Diversity: support

        Sending mode: 1Tx

        Receiving mode: 2Rx

        Equalizaton:  support

        Authentication: support IP and PPP type,  support PAP/CHAP authentication.

2.4  WIFI

       Agreement:   802.11b/g/n

       band: 2.4-2.4835 GHz

       Users: 10

       Transmission distance: indoors up to 20M

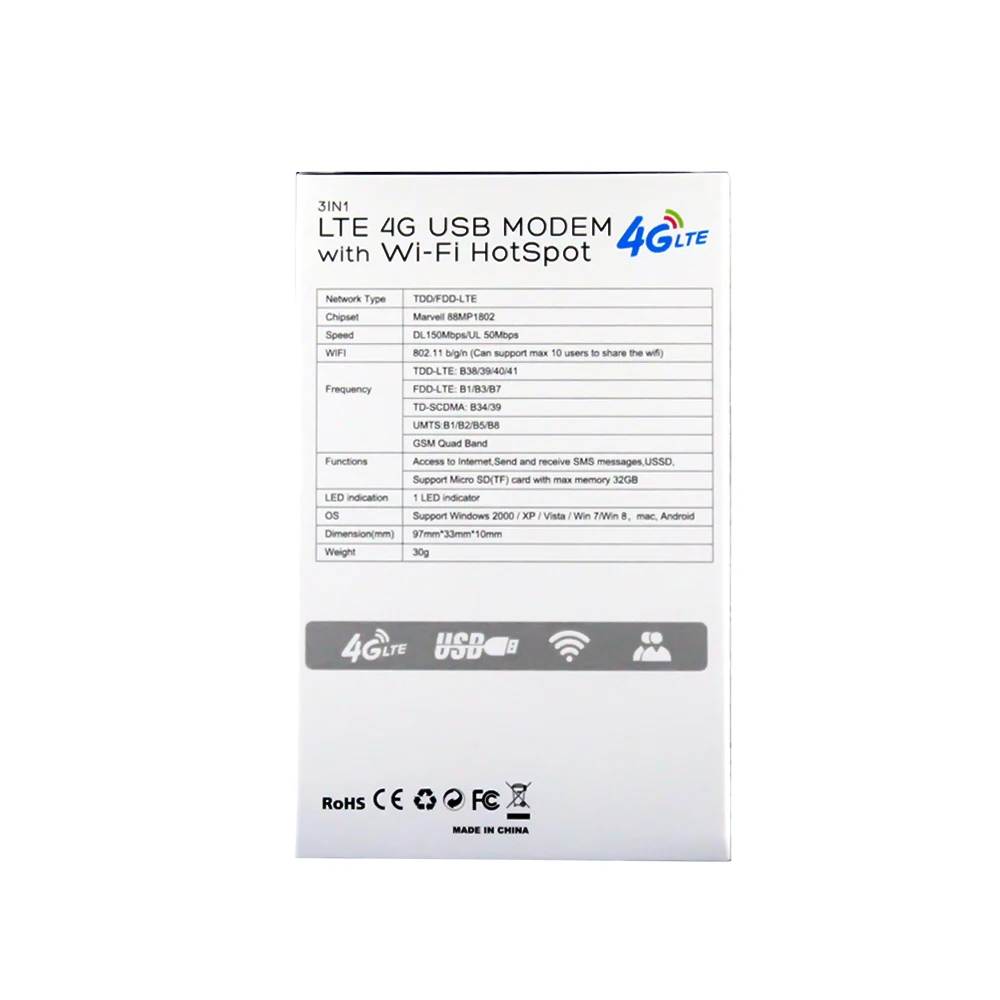

3.0 packing content:

       unit  *1

       USB cable *1

       manual  *1





Certifications


Product Line

Portable 4G Wireless Router Mobile Wifi Hotspot SIM Card Slot

Our Services

This model have been sold about 200,000 pcs.

Packaging & Shipping

 Unit size: 97*33*10mm

 Unit box size:

 Unit gross weight:  53g

 Carton box size: 45*34*29.5 cm

 250 pcs /carton
